Semen Storage and Transport Tanks

PRODUCTS

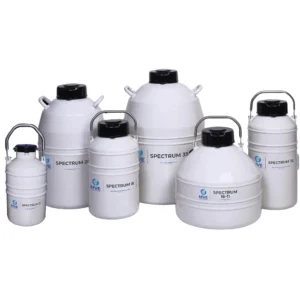

MVE Spectrum Series

High-Quality Small-Capacity Frozen Semen Storage Solutions

Specifically designed for livestock producers, the MVE Spectrum Series offers lightweight and economical tanks that ensure long-term and efficient storage of bull semen. Known for their low liquid nitrogen consumption, these tanks deliver reliable performance even under the toughest farm conditions.

Key Features:

Compact Storage Capacity: Tailored for breeders’ practical needs.
Low Liquid Nitrogen Consumption: Cost-effective and efficient use.
Lightweight and Portable: Easy to carry and relocate.
BEND DON’T BREAK Technology (Spectrum 20 Signature):

A reinforced upper neck design that enhances resistance to shock during transport.
SEMEN SAFE™ Feature (Spectrum 20 Signature): A composite neck structure 20% stronger than previous models, offering extra protection against impact.

BEND DON’T BREAK™ Technology:
Following years of intensive development and testing, the Spectrum 20 Signature model introduces a new upper neck shape designed to flex under extreme G-force. This structure absorbs impact stress to minimize damage during transport and significantly enhances tank durability.

SEMEN SAFE™ Feature:
Purpose-built for bull semen transport, the Spectrum 20 Signature features a neck design that is 20% stronger than earlier models. This added reinforcement helps prevent structural damage under high G-force during handling and movement.

Available Models and Capacities:

Spectrum 3: 6 canisters, capacity for 1,980 × 0.25 cc straws, 3.6 L liquid capacity
Spectrum 8: 6 canisters, capacity for 1,980 × 0.25 cc straws, 8.4 L liquid capacity
Spectrum 12: 6 canisters, capacity for 1,512 × 0.25 cc straws, 11.0 L liquid capacity
Spectrum 20 Signature: 6 canisters, capacity for 1,512 × 0.25 cc straws, 20.5 L liquid capacity
Spectrum 35: 6 canisters, capacity for 1,512 × 0.25 cc straws, 36.5 L liquid capacity

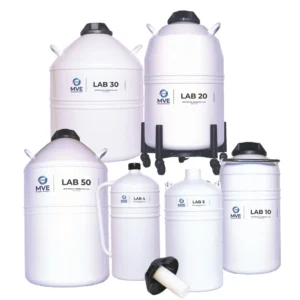

MVE Lab Series

The MVE Lab Series offers lightweight, compact aluminum dewars designed for the safe and efficient storage of liquid nitrogen. These tanks ensure secure containment and allow for the quick and easy refilling of semen storage tanks when needed. With a high-strength neck tube and advanced chemical vacuum retention system, they minimize nitrogen loss and support long-term use.

Key Features:
– Efficient Storage: Enables effective containment of liquid nitrogen with minimal consumption.
– Lightweight and Portable Design: Compact build allows for easy handling and transport.
– Durable Construction: High-strength neck tube and advanced vacuum system provide long-lasting performance.
– Various Capacities: Available in a range of sizes from 4 to 50 liters to meet diverse storage needs.

Available Models and Capacities:

LAB 4: 4-liter capacity, daily evaporation rate of 0.19 L
LAB 5: 5-liter capacity, daily evaporation rate of 0.15 L
LAB 10: 10-liter capacity, daily evaporation rate of 0.18 L
LAB 20: 20-liter capacity, daily evaporation rate of 0.18 L
LAB 30: 32-liter capacity, daily evaporation rate of 0.22 L
LAB 47: 47-liter capacity, daily evaporation rate of 0.39 L
LAB 50: 50-liter capacity, daily evaporation rate of 0.49 L

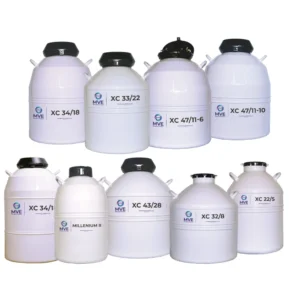

MVE SC/XC Series

The MVE SC/XC Series features lightweight and portable aluminum dewars designed for long-term cryogenic storage of genetic materials such as bull semen, embryos, and oocytes. The SC Series offers standard straw capacity with extended hold times, while the XC Series provides higher storage volume and multiple canister configurations to streamline inventory management.

Key Features:
– Low Liquid Nitrogen Consumption: Economical operation with minimized loss.
– Lightweight and Portable Design: Easy to handle and transport.
– Durable Construction: Reliable performance even under harsh conditions.
– Advanced Safety Features: Bend Don’t Break™ and Semen Safe™ technologies reduce the risk of transport damage and enhance the security of valuable samples.
– Warranty: Backed by a 2-year parts and 5-year vacuum warranty.

Model Options and Capacities:

SC Series:

SC 3/3: 3.6 L capacity, 6 canisters, 440 straw capacity, 0.13 L/day evaporation rate
SC 11/7: 11 L capacity, 6 canisters, 660 straw capacity, 0.16 L/day evaporation rate
SC 20/20 Signature: 20.5 L capacity, 6 canisters, 660 straw capacity, 0.085 L/day evaporation rate

XC Series:

XC 20 Signature: 20.5 L capacity, 6 canisters, 660 straw capacity, 0.09 L/day evaporation rate
XC 32/8: 32 L capacity, 9 canisters, 2,520 straw capacity, 0.35 L/day evaporation rate
XC 34/18: 34.8 L capacity, 6 canisters, 2,100 straw capacity, 0.18 L/day evaporation rate

MVE SC and XC Series tanks ensure safe and efficient storage of your genetic materials, offering long-term preservation and convenient access when needed.

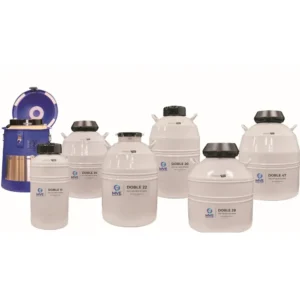

MVE Doble Series

The MVE Doble Series represents the first aluminum dewars to combine cryogenic shipping and long-term liquid nitrogen storage in a single device. Thanks to QWick™ technology, they are ready for use in just two hours—suitable for both vapor-phase shipping and liquid-phase storage.

Introducing QWick™ Charge Technology

The MVE Doble Series incorporates a special absorbent wicking material known as QWick™. This innovative technology enables the tank to be charged with liquid nitrogen in less than two hours

Despite the fast charge time, these aluminum dewars offer excellent hold durations. Once charged, they can function as dry shippers, safely preserving your samples for up to 21 days.

To activate QWick™ Charge Technology, vapor shippers must first be precooled with liquid nitrogen for 24 hours. Please consult the vapor shipper user guide for detailed instructions.

Key Features:

– Up to 21 days of protection in vapor-phase shipment
– Ready for immediate field use and reusable when filled with liquid nitrogen
– Lightweight aluminum design with low LN₂ consumption
– Impact-resistant with BEND DON’T BREAK™ and SEMEN SAFE™ protection technologies
– 2-year parts warranty, 3-year vacuum warranty, compliant with IATA A152 and EU Medical Device Directive

Model & Capacity Overview:

MVE Doble 11: 6 canisters, capacity of 660 0.5cc straws, 10.0 liters liquid capacity
MVE Doble 20: 6 canisters, capacity of 660 0.5cc straws, 18.5 liters liquid capacity
MVE Doble 22: 6 canisters, capacity of 2,400 0.5cc straws, 20.0 liters liquid capacity
MVE Doble 28: 6 canisters, capacity of 2,400 0.5cc straws, 28.0 liters liquid capacity
MVE Doble 34: 6 canisters, capacity of 2,100 0.5cc straws, 32.0 liters liquid capacity
MVE Doble 47: 6 canisters, capacity of 4,500 0.5cc straws, 46.0 liters liquid capacity
MVE Doble 47-10: 10 canisters, capacity of 3,500 0.5cc straws, 46.0 liters liquid capacity

Ease of Use:

Once shipping is complete, the same tank can be used for on-site storage without the need for refilling or transfer. This makes it an ideal, practical, and reliable solution for both farm and clinical applications.

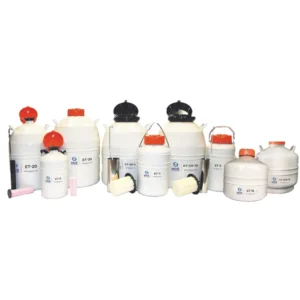

MVE ET Series

The MVE ET Series offers economical, high-performance liquid nitrogen storage tanks specifically designed to meet the demands of artificial insemination technicians working in farm environments. Every component of these dewars is precisely engineered to maintain MVE’s reputation for quality and craftsmanship, while providing cost-effective solutions for on-farm use.

Key Features:
– Farm-Ready Design: Built to suit the needs of artificial insemination specialists.
– Extended Nitrogen Retention: Maintains liquid nitrogen for 8 to 12-week service intervals.
– Advanced Vacuum Technology: Delivers low nitrogen consumption with high efficiency.
– Lightweight and Portable: Easy to transport; ET-2 through ET-16 models feature a bucket-style carrying handle.
– Enhanced Security: Lockable lid provides added protection of contents.
– Durable and Long-Lasting: Built to withstand harsh farm conditions, with a 2-year vacuum warranty.
– Compliance with EU Standards: Conforms to Medical Device Directive MDD 93/42/EEC.

Available Models and Capacities:

ET-2: 2.2 L capacity, 3 canisters, 0.09 L/day evaporation rate
ET-3: 3.6 L capacity, 6 canisters, 0.15 L/day evaporation rate
ET-7: 8.4 L capacity, 6 canisters, 0.171 L/day evaporation rate
ET-11: 11 L capacity, 6 canisters, 0.174 L/day evaporation rate
ET-16: 16.4 L capacity, 9 canisters, 0.17 L/day evaporation rate
ET-20: 20.5 L capacity, 6 canisters, 0.115 L/day evaporation rate
ET-35: 36 L capacity, 6 canisters, 0.123 L/day evaporation rate
ET-40/6: 39 L capacity, 6 canisters, 0.40 L/day evaporation rate
ET-40/10: 39 L capacity, 10 canisters, 0.40 L/day evaporation rate
ET-47/6: 47.7 L capacity, 6 canisters, 0.40 L/day evaporation rate
ET-47/10: 47.7 L capacity, 10 canisters, 0.40 L/day evaporation rate
